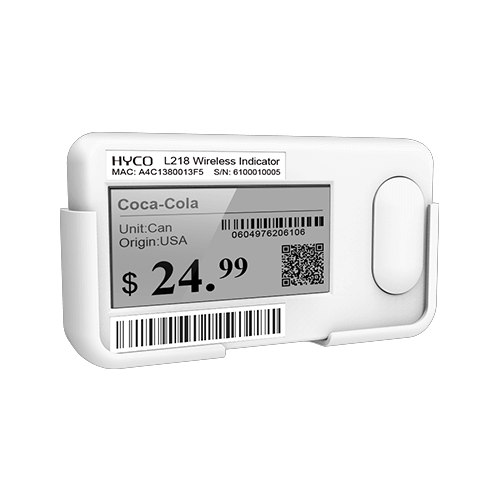

L218
Wireless Light Tag
Simple Usage & Flexible Application, Energy Saving, Mechanical Button.
Light & Small
Low Cost & High Efficiency
Flexible Application
Quick Positioning
Smart Picking
Smart Picking

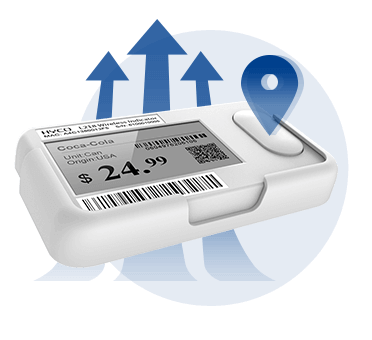

Light, small, easier, faster, smarter and more accurate.
Flexible Application
Multipurpose
Multipurpose

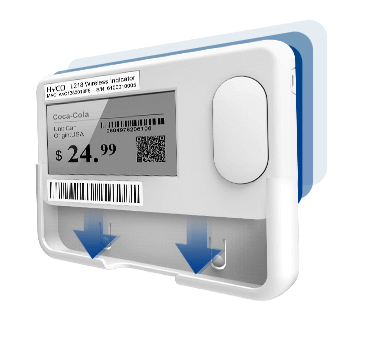

Easy embedded support installation, no pipeline needs, flexible combination of various business scenarios.
High Energy-efficiency

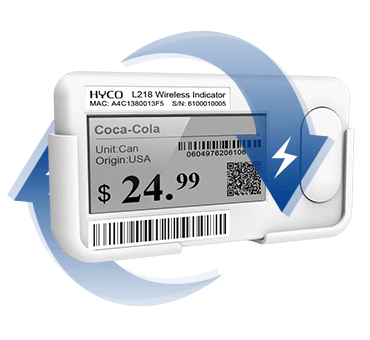

Rechargeable battery, maintenance-free, durable and long life cycle.
User Friendly, Low Cost, High Efficiency
Less investment, shorter learning curve – an easier and more efficient light picking solution.
Comparison
| Traditional Pick Lights | HYCO Wireless Light Tag |
|---|---|
| High cost and maintenance fee | Low cost and no maintenance without maintenance |
| Large size taking up space | Tiny HMI |
| Installed at a fixed site | Simple and flexible usage in multiple environments |
| Large annual electricity consumption | Low-power consumption, low carbon and high efficiency |
| Short life cycle | Long life cycle |

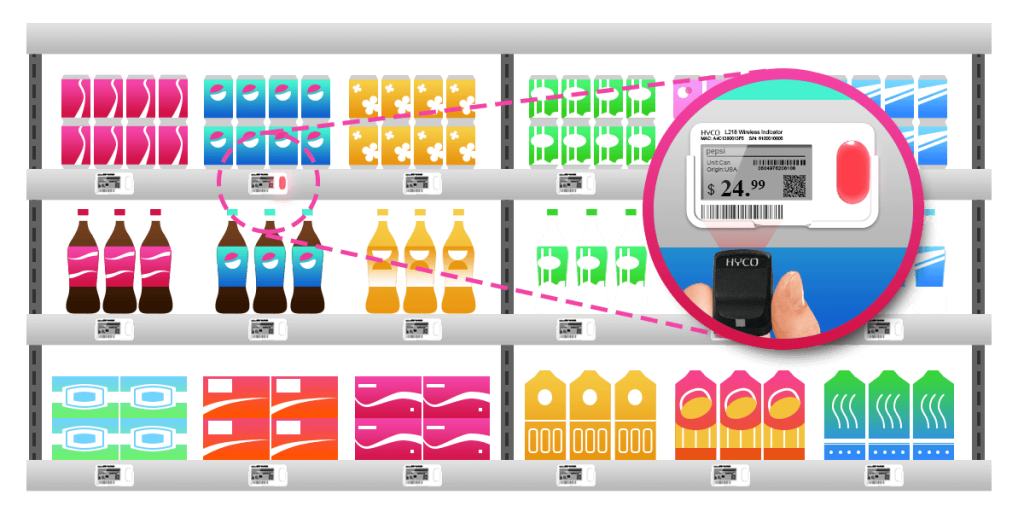

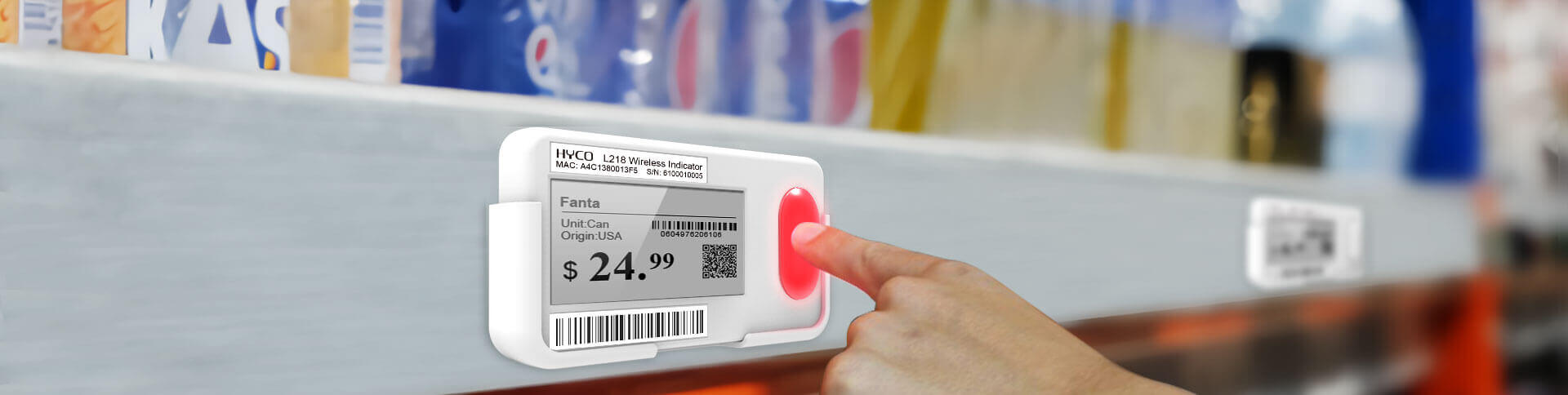

Applications
Previous
Next
Specification
| Model | L218 |
|---|---|
| Weight | ＜45g |

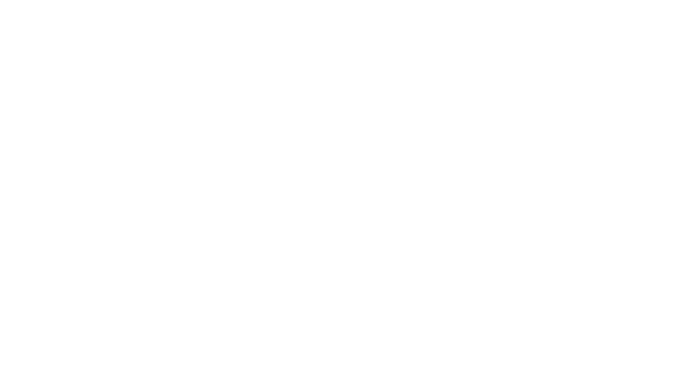

| Dimensions (W*D*H) | 86mm*47mm*12.8mm(without embedded support) 89.3mm*48.6mm*14.6mm (with embedded support) |
| LED Indicator | RGB LED (programmable) |
| Mechanical Button | The inclusion of a mechanical button that responds to both short and long presses enables the device to perform various interactive functions. This feature enhances the system's usability and simplifies its management. |
| Buzzer | Supported |
| Communication | GFSK@433MHz Wireless |
| Installation | Embedded support |
| Battery (Rechargeable) | 1000mAh 2.5mm DC |
| Charging Time | 2.5 hours |
| Battery Life | 12 months |
| Display | 2.13-inch e-ink screen (122*250 Resolution) |
| Extended Storage | 1-8MByte |
| Recharging | With centralized charger (supports charging 10 devices at the same time) |
| Operating Temperature | -10℃ to 50℃(14℉ to 122℉) |
| Humidity | 0% - 80% RH (non condensing) |
Specifications subject to change without notice
