Specifications of W2X Ring Scanners
Model
- Scanner
- Resolution
- Code Reading
- Scanning Distance
- Weight
- Dimensions (W*D*H)
- Ring Straps
- Bluetooth
- LED Indicator
- Vibration Indicator
- Battery
- Charging Cradle
- Battery Life
- Scanning Trigger
- IP Level
- Drop Test
- Operating Temperature
- Humidity
-

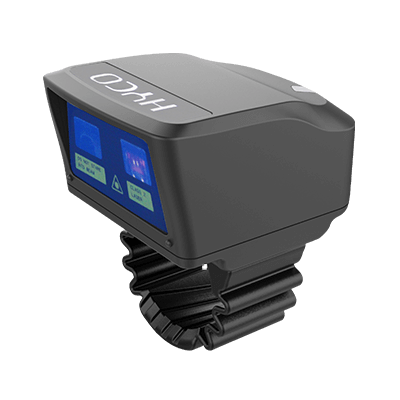

W26
- HYCO High-speed laser scanner
- /
- Printed barcodes
- General and macro type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 18 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-

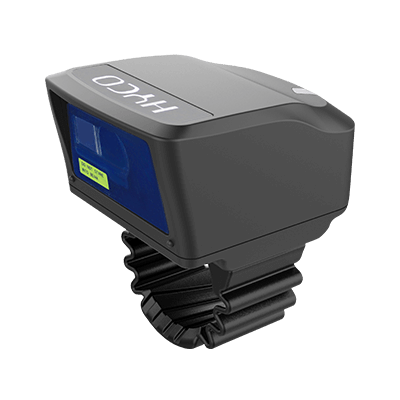

W27
- HYCO CCD scanner
- 2500 pixcels
- Printed and on-screen barcodes
- General type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 12 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-

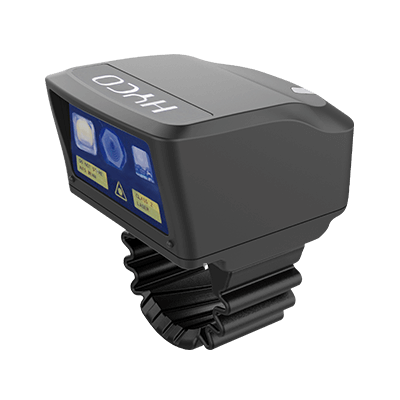

W28
- HYCO CMOS-Sensor Scanner
- 1280x800 pixcels
- Barcodes/2D codes
- Long, general or macro type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 8 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-
W28LD
- HYCO CMOS-Sensor Scanner
- 1280x800 pixcels
- 5 meters barcodes/2D codes reading
- 5 meters long-distance scanning
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 8 hours (when fully charged with 100cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-
W75
- HYCO High-speed laser scanner
- /
- Printed barcodes
- General and macro type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 18 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-
W77
- HYCO CCD scanner
- 2500 pixcels
- Printed and on-screen barcodes
- General type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 12 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-
W79
- HYCO CMOS-Sensor Scanner
- 1280x800 pixcels
- Barcodes/2D codes
- Long, general or macro type
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 8 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
-
W79LD
- HYCO CMOS-Sensor Scanner
- 1280x800 pixcels
- 5 meters barcodes/2D codes reading
- 5 meters long-distance scanning
- 20g (without strap)
- 38.6mm*29.0mm*22.1mm
- 10 pcs in different sizes
- BT4.2, BLE
- RGB LED (programmable)
- Supported
- 200mAh@3.7V
- With USB dongle and Bluetooth adapter
- 8 hours (when fully charged with 100cm depth of field, and scanning once every 5 seconds)
- Touch-to-scan
- IP66
- 3 meters
- -10℃ to 50℃(14℉ to 122℉)
- 0%-95%RH (non condensing)
